Low Voltage VFD (Standard Drive)

Low Voltage VFD (Standard Drive)

Model Name

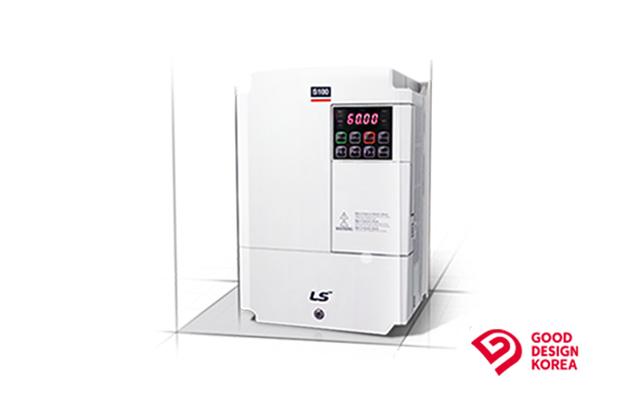

S100

Series

Inverter (VFD (Smart Automation Solution))

View AllView All Series

Data

Catalog-LS ELECTRIC-Low Voltage VFD-Drive Solution Catalog

Manufacturer information

LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

LS ELECTRIC

Brand

SKU

133134

Product Name

Low Voltage VFD (Standard Drive)

Model Name

S100

Size

Weight

Product Details

1. Strong Performance

Powerful sensorless control

Starting torque of 200%/0.5Hz is produced and provides robust power in the low speed region.

Selectable rotary/standstill auto-tuning

Standstill auto-tuning is equipped to find motor constants without rotation under conditions where the system is installed or the motor cannot rotate.

Flying start function

Inverter capable of quick, reliable, and smooth restart into bi-directional rotating loads.

2. Space-efficient design

Side by side installation

Minimized distance between products enables control panel size reduction when installing multiple AC Drives

Smaller Size

Main parts are optimally arranged inside through the use of thermal radiation analysis and 3-dimensional design to reduce the dimensions by up to 60% (volume based) compared to the previous product (iG5A)

3. Standard Compliance

Built-in DC reactor

Effective in improving power factors and decreasing THD

※ 3-phase 400V 30~75kW

Built-in EMC filter

Meets the electrical noise reduction regulation

Related standards: Certified 2nd Environment/Category C3 (Class A) CE standard

※ C2 : 1-phase 200V 0.4~2.2kW

※ C3 : 3-phase 400V 0.4~75kW

Global compliance (UL, CE)

Global standard compliance

※ UL, CE, Gost, C-tick and cUL

Dual rating operation

Designed to choose between heavy and normal duty operations

Overload capacity

※ Heavy duty operation : 150% of rated current, 60 seconds

※ Normal duty operation : 120% of rated current, 60 seconds

Various field networks

Able to deal with a variety of field networks easy maintenance and mounting.

Various field bus options
Profibus, Ethernet IP, Modbus TCP, CANopen Easy to install and use

4. Safety Function

Built-in Safety Torque Off (STO)

The Safety input function meets EN ISO 13849-1 PLd and EN 61508 SIL2 (En 60204-1, stop category 0)

This feature is equipped and meets current safety standards

5. Suitable for Users

Simple cooling fan replacement

Replaceable fan without complete disassembly

Smart copier

1. Smart copier allows users to download & upload the parameters from/to S100 without AC input power.

2. Customized main firmware is able to be downloaded to S100 using Smart copier.

3. Firmware of main control and I/O saved in Smart copier can be downloaded to S100

Multi-keypad function

A single LCD keypad can be used to set up the parameters of a RS485 connected drive

LCD keypad (same as iS7 model) is used to easily set up parameters. Parameters can be copied to other drives

Multi language support will be available

Conduit option

S100 meets UL type 1 with this option.

Flange option

With this option, S100 allows its heatsink to be installed outside of the panel for a better cooling system.

Contactors

1-Phase 200V (0.4~2.2kW)

LSLV ㅁㅁㅁㅁ S100-1 ㅁㅁㅁㅁ			0004	0008	0015	0022
Motor Rating	Heavy Duty(HD)	[HP]	0.5	1.0	2.0	3.0
	Heavy Duty(HD)	[kW]	0.4	0.75	1.5	2.2
	Heavy Duty(HD)	[HP]	1.0	2.0	3.0	5.0
	Heavy Duty(HD)	[kW]	0.75	1.5	2.2	3.7
Output Rating	Capacity [kVA]	Heavy Duty(HD)	1.0	1.9	3.0	4.2
	Capacity [kVA]	Normal Duty(ND)	1.2	2.3	3.8	4.6
	Rated Current	Heavy Duty(HD)	2.5	5.0	8.0	11.0
	Rated Current	Normal Duty(ND)	3.1	6.0	9.6	12.0
	Frequency [Hz]		0~400Hz (IM Sensorless : 0~120[Hz])
	Voltage [V]		3-phase 200~240V
Input Rating	Voltage [V]		-phase 200~240VAC (-15% ~ +10%)
	Frequency [Hz]		50~60Hz ( ±5%)
	Rated Current [A]	Heavy Duty(HD)	4.4	93.	15.6	21.7
	Rated Current [A]	Normal Duty(ND)	5.8	11.7	19.7	24.0
Weight [kg]			0.9 (1.14)	1.3 (1.76)	1.5 (1.76)	2.0 (2.22)

3-Phase 200V (0.4~15kW)

LSLV ㅁㅁㅁㅁ S100-2 ㅁㅁㅁㅁ			0004	0008	0015	0022	0037	0040	0055	0075	0110	0150
Motor Rating	Heavy Duty(HD)	[HP]	0.5	1.0	2.0	3.0	5.0	5.4	7.5	10.0	15.0	20.0
	Heavy Duty(HD)	[kW]	0.4	0.75	1.5	2.2	3.7	4.0	5.5	7.5	11.0	15.0
	Heavy Duty(HD)	[HP]	1.0	2.0	3.0	5.0	5.4	7.5	10.0	15.0	20.0	25.0
	Heavy Duty(HD)	[kW]	0.75	1.5	2.2	3.7	4.0	5.5	7.5	11.0	15.0	18.5
Output Rating	Capacity [kVA]	Heavy Duty(HD)	1.0	1.9	3.0	4.2	6.1	6.5	9.1	12.2	17.5	22.9
	Capacity [kVA]	Normal Duty(ND)	1.2	2.3	3.8	4.6	6.9	6.9	11.4	15.2	21.3	26.3
	Rated Current [3-Phase input] (A)	Heavy Duty(HD)	2.5	5.0	8.0	11.0	16.0	17.0	24.0	32.0	46.0	60.0
	Rated Current [3-Phase input] (A)	Normal Duty(ND)	3.1	6.0	9.6	12.0	18.0	18.0	30.0	40.0	56.0	69.0
	Rated Current [Single-Phase input] (A)	Heavy Duty(HD)	1.5	2.8	4.6	6.1	8.8	9.3	13.0	18.0	26.0	33.0
	Rated Current [Single-Phase input] (A)	Normal Duty(ND)	1.8	3.3	5.7	6.6	9.9	9.9	16.0	22.0	31.0	38.0
	Frequency [Hz]		0~400Hz (IM Sensorless : 0~120[Hz])
	Voltage [V]		3-phase 200~240V
Input Rating	Voltage [V]		3-Phase 200~240VAC (-15%~+10%) Single-Phase 200~240VAC (-5%~+10%)
	Frequency [Hz]		50~60Hz (±5%) (In case of single phase input, input frequency is only 60Hz (±5%))
	Rated Current [A]	Heavy Duty(HD)	2.2	4.9	8.4	11.8	17.5	18.5	25.8	34.9	50.8	66.7
	Rated Current [A]	Normal Duty(ND)	3.0	6.3	10.8	13.1	19.4	19.4	32.7	44.2	62.3	77.2
Weight [kg]			0.9	0.9	1.3	1.5	2.0	2.0	3.3	3.3	4.6	7.1

3-Phase 400V (0.4~22kW)

LSLV ㅁㅁㅁㅁ S100-4 ㅁㅁㅁㅁ			0004	0008	0015	0022	0037	0040	0055	0075	0110	0150	0185	0220
Motor Rating	Heavy Duty(HD)	[HP]	0.5	1.0	2.0	3.0	5.0	5.4	7.5	10.0	15.0	20.0	25.0	30.0
	Heavy Duty(HD)	[kW]	0.4	0.75	1.5	2.2	3.7	4.0	5.5	7.5	11.0	15.0	18.5	22.0
	Heavy Duty(HD)	[HP]	1.0	2.0	3.0	5.0	5.4	7.5	10.0	15.0	20.0	25.0	30.0	40.0
	Heavy Duty(HD)	[kW]	0.75	1.5	2.2	3.7	4.0	5.5	7.5	11.0	15.0	18.5	22.0	30.0
Output Rating	Capacity [kVA]	Heavy Duty(HD)	1.0	1.9	3.0	4.2	6.1	6.5	9.1	12.2	18.3	22.9	29.7	34.3
	Capacity [kVA]	Normal Duty(ND)	1.5	2.4	3.9	5.3	7.6	7.6	12.2	17.5	22.9	29.0	33.5	44.2
	Rated Current [3-Phase input] (A)	Heavy Duty(HD)	1.3	2.5	4.0	5.5	8.0	9.0	12.0	16.0	24.0	30.0	39.0	45.0
	Rated Current [3-Phase input] (A)	Normal Duty(ND)	2.0	3.1	5.1	6.9	10.0	10.0	16.0	23.0	30.0	38.0	44.0	58.0
	Rated Current [Single-Phase input] (A)	Heavy Duty(HD)	0.8	1.5	2.3	3.1	4.8	5.4	7.1	9.5	15.0	18.0	23.0	27.0
	Rated Current [Single-Phase input] (A)	Normal Duty(ND)	1.3	1.9	3.0	3.9	5.9	5.9	9.5	14.0	18.0	23.0	27.0	35.0
	Frequency [Hz]		0~400Hz (IM Sensorless : 0~120[Hz])
	Voltage [V]		3-phase 200~240V
Input Rating	Voltage [V]		3-Phase 200~240VAC (-15%~+10%) Single-Phase 200~240VAC (-5%~+10%)
	Frequency [Hz]		50~60Hz ( ±5%) (In case of single phase input, input frequency is only 60Hz (±5%))
	Rated Current [A]	Heavy Duty(HD)	1.1	2.4	4.2	5.9	8.7	9.8	12.9	17.5	26.5	33.4	43.6	50.7
	Rated Current [A]	Normal Duty(ND)	2.0	3.3	5.5	7.5	10.8	10.8	17.5	25.4	33.4	42.5	49.5	65.7
Weight [kg]			0.9 (1.18)	0. (1.18)	1.3 (1.77)	1.5 (1.80)	2.0 (2.23)	2.0 (2.23)	3.3	3.4	4.6	4.8	7.5	7.5

3-Phase 400V (30~75kW)

LSLV ㅁㅁㅁㅁ S100-4 ㅁㅁㅁㅁ			0300	0370	0450	0550	0750
Motor Rating	Heavy Duty(HD)	[HP]	40.0	50.0	60.0	75.0	100.0
	Heavy Duty(HD)	[kW]	30.0	37.0	45.0	55.0	75.0
	Heavy Duty(HD)	[HP]	50.0	60.0	75.0	100.0	120.0
	Heavy Duty(HD)	[kW]	37.0	45.0	55.0	75.0	90.0
Output Rating	Capacity [kVA]	Heavy Duty(HD)	46	57	69	84	116
	Capacity [kVA]	Normal Duty(ND)	55	67	78	106	126
	Rated Current [3-Phase input] (A)	Heavy Duty(HD)	61.0	75.0	91.0	110	152.0
	Rated Current [3-Phase input] (A)	Normal Duty(ND)	75	91	107	142	169.0
	Rated Current [Single-Phase input] (A)	Heavy Duty(HD)	32	39	47	57	78
	Rated Current [Single-Phase input] (A)	Normal Duty(ND)	39	47	55	73	87
	Frequency [Hz]		0~400Hz (IM Sensorless : 0~120[Hz])
	Voltage [V]		3-phase 380~480V
Input Rating	Voltage [V]		3-Phase 380~480VAC (-15%~+10%) Single-Phase 200~240VAC (-5%~+10%)
	Frequency [Hz]		50~60Hz ( ±5%) (In case of single phase input, input frequency is only 60Hz (±5%))
	Rated Current [A]	Heavy Duty(HD)	56.0	69.0	85.0	103.0	143.0
	Rated Current [A]	Normal Duty(ND)	69.0	85.0	100.0	134.0	160.0
Weight [kg]			25.8	34.4	34.4	41.8	43.8
