DC MCB (DC Miniature Circuit Breaker)
Model Name
-
Series
DC Component
Data
Catalog-LS ELECTRIC-DC Component for Renewable Energy Solution
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Brand
-
SKU
133019
Product Name
DC MCB (DC Miniature Circuit Breaker)
Model Name
-
Size
-
Weight
-
Product Details

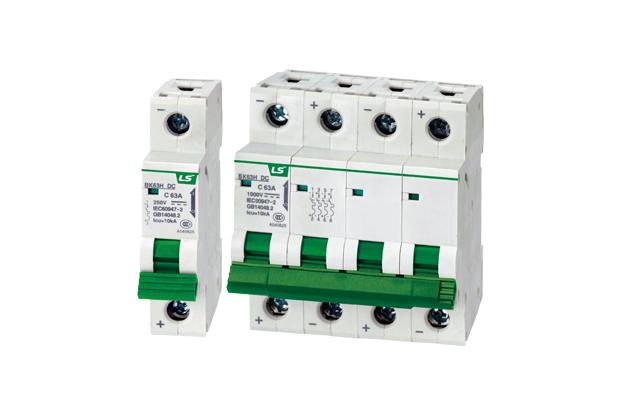

DC MCB DC Miniature Circuit Breaker

DC MCB was designed for direct current (DC) control circuit applications, used for over-current protection within appliances or electrical equipment.

It provide optimization products for DC system applications such as PV, and ESS.



Features

- Solar power, renewable suitable for DC power source

- Maximum working voltage: DC 1000V

- Rating and number of poles: 1~63A, 1/2/3/4 pole

- Rated voltage: DC 250/500/750/1000V

- Rated breaking capacity: 10kA

- Trip characteristic: B, C

- Accessories: AX, AL, SHT

- SEMKO CB



Specification

Rating Specification
Frame size 63AF
No. of poles 1P, 2P, 3P, 4P
Rated current, In 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Rated operational
voltage, Ue DC
Reference standard Poles 1P 2P 3P 4P
IEC 60947-2,Icu Rated voltage 250V 500V 750V 1000V
Breaking current 10kA 10kA 10kA 10kA
Rated insulation voltage, Ui AC 500V
Rated impulse withstand voltage, Uimp AC 6kV
Trip characteristic B (5In), C (8In)
Protection Overload and short circuit
Endurance life
(times)
Electrical 1,500
Mechanical 20,000
Degree of protection IP20
Tightening torque 18-4 AWG (0.75 ... 25mm²) / 20 Kgf.cm
Installation Mounting on 35mm DIN rail
Type of Terminal Lug type
Type of trip Thermal-Magnetic
Ambient temperature 40°C (Standard), -25~ +25°C (Use)
Approval CE, SEMCO, CB
