PLC GLOFA-GM Series (Software)
Model Name
GMWIN
Series
PLC (Smart Automation Solution)
Data
Catalog-LS ELECTRIC-PLC-Factory Automation Brochure
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Brand
-
SKU
133061
Product Name
PLC GLOFA-GM Series (Software)
Model Name
GMWIN
Size
-
Weight
-
Product Details

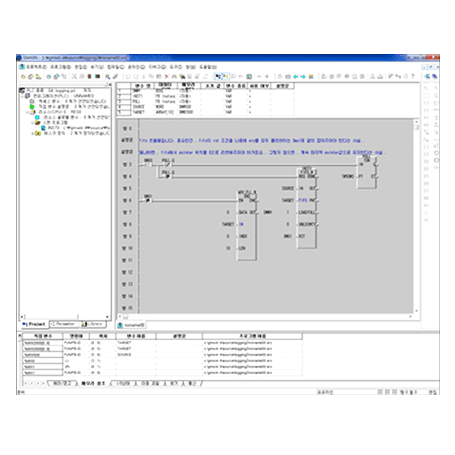

GMWIN (Software)

Programming Software for GLOFA series GMWIN is a software tool that writes a program and debugs for all types of GLOFA PLC. Its international standard language (LD, IL, SFC) and convenient user interface make programming and debugging simpler and more convenient.



Features

Introduction

GMWIN is the software tool that programs and debugs for all GLOFA-GM PLC series. GMWIN is capable of editing, simultaneously debugging multiple programs, and provides a simulation function to maximize user convenience. Users can select the most easily applicable language for the system among various program languages such as LD, SFC, IL. Programming easily and conveniently is made possible using symbols and to assign the memory of the program variables automatically or by user designation. Using various programs contained in the PLC system, users may create a program and test it easily and conveniently



Features

ㆍSupports the international language (IEC61131-3)

ㆍIL, LD, SFC

ㆍSupports Windows 95, 98, ME, NT, 2000, XP

ㆍSimulation program test and debugging without PLC

ㆍEditing, monitoring, and debugging using symbols and variable names

ㆍAutomatic memory allocation support

ㆍCompiler sets a variable location automatically

ㆍOptimization (PLC code) by compiler method

ㆍUser-defined function/function block support



Connection with PLC

System requirement

ㆍIntel compatible PC (Intel 486 or later)

ㆍWindows 95, 98, ME, NT, 2000, XP

ㆍVideo adapter (VGA or later)

ㆍMouse/Printer compatible with Windows

ㆍ16M RAM and 30M free hard disk space



System Requirement

Connection with PLC

- To connect GMWIN to PLC, there are 2 options - Method of Connection and Depth of Connection. For Method of Connection, there are 5 modes: connection by RS-232C, connection by modem, connection by communication module (GLOFA Fnet/Mnet for PC), connection by network (Ethernet), connection by USB and for Depth of Connection, there are 3 steps: local connection, remote 1, and remote 2. Setting connection option is available by selecting menu [Project]-[Option].

RS-232C wiring
