| GENERAL SPECIFICATIONS | |||
| Resolution | 5nm@30kV (20kV Standard) | Accelerating Voltage | 0.2kV ~ 20kV (Option : 30kV) |
| Magnification | 10X ~ 150,000X(Max.) (Additional Digital Zoom 2X, 4X, 8X) |
Detector | SE Detector / BSE Detector(Option) |
| Stage Stroke | Stage : X,Y(40mm) / Z(5~40mm) (Tilt 0° ~ 45°, Rotation 360°) |
Frame Memory | Area Mode : [640X480] Inspection Mode : [960X640 ~ 2048X1536] Photo Mode : [2048X1536 ~ 8192X6144] |
This product is manufactured by
Saeron Technology
Manufacturer information
Saeron Technology
Electronic microscope, Electron beam welding machine, Scanning electron microscope, Electron beam, FE-SEM and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
Saeron Technology
Brand
-
SKU
142759
Product Name

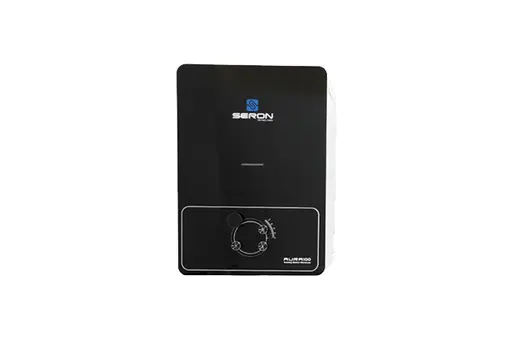

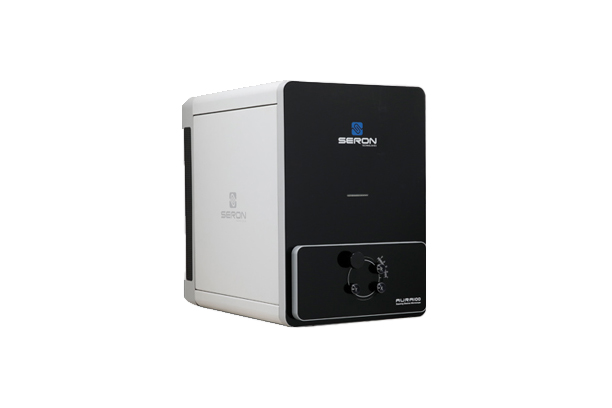

Scanning Electron Microscope
Model Name
Table Mini SEM AURA
Size
-
Weight
-
Product Details
Product Description
Seron Technologies Inc., Korea’s leading technology company, launched Desk-Top Mini SEM with top-down technology. (Selected as an innovative product in the KES Korea Electronics Show 2016)
Patents and Certifications
CE Certificates
TABLET MINI SEM AURA SERIES
It is a practically designed model for non-professional beginners and users in the macro, which is a product optimized by meeting the development needs in various fields.
- Mini SEM with a reasonable price
- Optic design using technology to reduce numerical values for resolution improvement
- Easy installation and transport
Small and slim size
Features
1) Mini SEM, a customized product with a reasonable price
2) Produced by free beam alignment technology
3) Equipped with an optic design using technology to reduce numerical values – Improved resolution
4) Digital Zoom(2X, 4X, 8X) & High Pixel Resolution
5) Extreme Low kV Mode supported(SEM Image Obtain without Coating)
6) Slim and portable size [388(W) X 600(D) X 638(H)mm³]
7) Powerful analysis software and geometric shape measurement
8) Charge Reduction mode – optional
Specifications
Electronic microscope, Electron beam welding machine, Scanning electron microscope, Electron beam, FE-SEM and more
Korea's representative electron beam band that leads the nation's technology.
Starting with the successful localization of the scanning electron microscope (SEM) in 2001 for the first time in Korea, Seron Technologies Inc. has been recognized for its technological prowess by contributing to the advancement of Korean science and technology and industries such as nano-materials, semiconductors, chemicals, and textiles. Based on the exclusive electron beam optic design technology accumulated over the years, it is providing top-notch electron microscope products in Korea and customization services to fulfill the various needs of customers. In addition, we are launching a variety of models from low-end to high-end for differentiation against low-cost products produced by latecomers in the domestic market that are oriented toward price competitiveness and to compete with global competitors with advanced technology.
Going forward, we will continue to strive to provide optimal products and exclusive application solutions for customer satisfaction and fulfillment, while securing technological competitiveness in relentless pursuit of the development of next-generation advanced technology to achieve global brand status.
