Nano Manipultor&Probe
Model Name
-
Series
Option&Sample Prep.
Data
-
Manufacturer information
provider logo
Saeron TechnologyElectronic microscope, Electron beam welding machine, Scanning electron microscope, Electron beam, FE-SEM and more
Problem with product info?
Update request
Manufacturer
Saeron Technology
Brand
-
SKU
142771
Product Name
Nano Manipultor&Probe
Model Name
Size
-
Weight
-
Product Details

Product Description

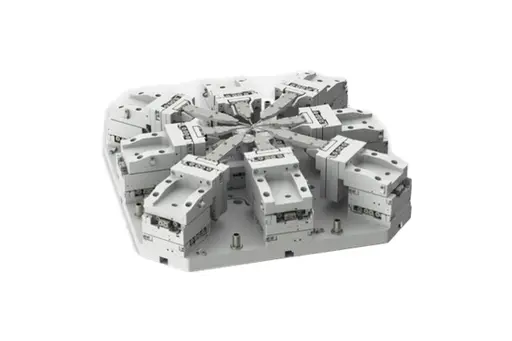

The intended use of the probe-station SMARPROBE is the positioning of probes to analyze or manipulate samples fixed onto its sample stage. The system can be used for atmospheric probing of large samples up to nano-probing of the latest semi-conductor technologies within an electron microscope. If the intended use is nano-probing it is recommended to choose the SMARPROBE LX with an active temperature control for low thermal drift (L) and/or with an extended scan range for vibration free fine-positioning (X). Typical applications of the SMARPROBE are:



Specifications

GENERAL SPECIFICATIONS
Operating Environment HV (10-7 mbar), Ambient Conditions Plasma Cleaning Plasma Cleaning
Numbers of Manipulators Up to 8 Coarse Driving Principle Piezo Stick-Slip
Fine Driving Principle¹ Piezo Scanner Relative Drift between Probe and Sample >1,< 1 for L Extension
Max. Probing Area [mm] 25×25 Max. Sample Size [mm] 25×25, larger size will reduce the probing area
Min. SEM Working Distance [mm] 1 for 10×10 Samples
2 for 25×25 Samples
Base Materials Aluminum/Titan
Dimensions Nanoprober, W x L x H [mm] 187 x 187 x 56 for 5-8 Manipulators (SP8)
156 x 156 x 56 for 2-4 Manipulators (SP4)
