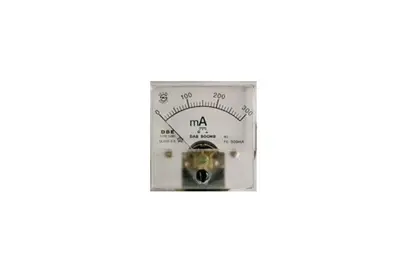

Overview

The types of operating principle of the ammeter are the moving coil type.

Connection

Features

ㆍFor higher ranges than 5A, use external shunt with a 50mV(60mV) instrument.

ㆍWhen D.C ammeter is used with a shunt, it is noted that a full scale and a terminal voltage(50mV, 60mV) of the ammeter are same as the rated primary current and secondary voltage of the shunt respectively.

ㆍUse any leadwire of which resistance is less then 0.05Ω in total. if the shunt lead resistance is indefinite, the meters may be set up with a available resistor(V.R) for sensitivity adjustment.

ㆍThe shunt should be connected to the negative side linc.

Meter Rating

형 식	직결사용		Shunt 사용
	최저측정치	최대측정치	최저측정치	최대측정치
moving Coil type	50㎂	30A	* / 50mV	* / 200mV

Specification

Shape of case	Type		Rated Curr.	Operating Princ	Accur(%)	Freq	Berden(VA)
Rectangular(60x60mm)	D-60	AC DC	5A 50,60mV		±2.5 ±2.5	50~60Hz	1.0 50mV Drop
Rectangular(60x80mm)	D-68	AC DC	5A 50,60mV		±2.5 ±2.5	50~60Hz	1.0 50mV Drop
Rectangular(80x60mm)	D-80	AC DC	5A 50,60mV		±2.5 ±2.5	50~60Hz	1.0 50mV Drop
Rectangular(100x83mm)	D-100	AC DC	5A 50,60mV		±1.5 ±1.5	50~60Hz	1.0 50mV Drop
Rectangular(80x80mm) Wide Angle	D-800	AC DC	5A 50,60mV		±1.5 ±1.5	50~60Hz	1.0 50mV Drop
Rectangular(110x110mm) Wide Angle	D-110	AC DC	5A 50,60mV		±1.5 ±1.5	50~60Hz	1.0 50mV Drop
Rectangular(70ø)	D-70	AC DC	5A 50,60mV		±2.5 ±2.5	50~60Hz	1.0 50mV Drop
Rectangular(72x72mm)	D-200	AC DC	5A 50,60mV		±1.5 ±1.5	50~60Hz	1.0 50mV Drop
Rectangular(98x98mm)	D-300	AC DC	5A 50,60mV		±1.5 ±1.5	50~60Hz	1.0 50mV Drop
