Overview

The types of operating principle of voltmeter are the rectifier type(A.C), and moving iron type(A.C) the voltmeter is used with a potential transformer externally mounted in case of high voltage.

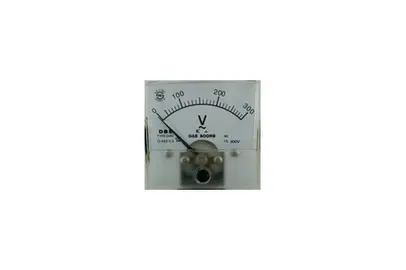

Model

Connection

Features

ㆍFor higher ranges than 300V, use potential transformer(P.T) with a 150V A.C voltmeter But the voltmeter of 600V is able to supply by order of customer.

ㆍWhen lettering the voltage ratio on voltmeter, the meters for 3phase 4wire are lettered as like as the meters for 3phase 3wire. namely on 3phase 4wire in case of the indicating for line-to-line voltage by line-to-ground voltage, and line-to-line voltage by line-to-line voltage, he meters are not wited the √3

ㆍFull scale of voltmeter when use the P.T the standard calibration value of voltmeters are 150V and/or 300V but, the full scale of voltmeters are indicated the 30Kv, 9000V, 4500V and 600V etc.

Meter rating

형 식	직결사용		PT 사용
	최저측정치	최대측정치	최저측정치	최대측정치
rectifier type	18V	600V	-	* / 110V
iron type	30V	300V	-	* / 220V

Specification

Shape of case	Type		Rated Curr.	Operating Princ	Accur(%)	Freq	Berden(VA)
Rectangular(60x60mm)	D-60	AC DC	150, 300V 1, 600V		±2.5 ±2.5	50~60Hz	0.5
							1K Ω/V
Rectangular(60x80mm)	D-68	AC DC	150, 300V 1, 600V		±2.5 ±2.5	50~60Hz	0.5
							1K Ω/V
Rectangular(80x60mm)	D-80	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(100x83mm)	D-100	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	5.0, 0.5
							1K Ω/V
Rectangular(80x80mm) Wide Angle	D-800	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(110x110mm) Wide Angle	D-110	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(70ø)	D-70	AC DC	150, 300V 1, 600V		±2.5 ±2.5	50~60Hz	0.5
							1K Ω/V
Rectangular(72x72mm)	D-200	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(98x98mm)	D-300	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
