Product Details

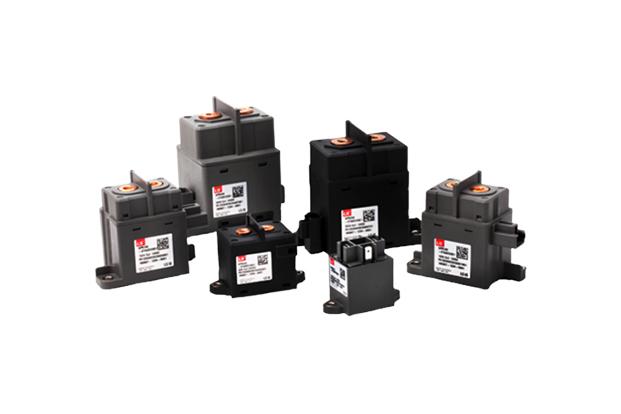

EV Relay

The EV Relay GER series has a rated operating voltage of 450Vdc and has been proven to be reliable and stable, which can be applied to many eco-friendly projects of global automobiles in Korea and abroad.



Features

The Smallest Size Among Other Relays at the Same Performance Level

ㆍEnabling fabrication for minimum-sized panels

ㆍApplicable to diverse industries with low cost



Low Audible Noise & Anti-shock Design

ㆍSilent operation for environment comfort

ㆍReliable design to properly manage mechanical shock and vibrations



Superior Reliability Assurance Under Automotive Environment

ㆍSafe operation under volatile and harsh environments

ㆍExcellent performance with electrical and mechanical endurances



Specification

GER series(450Vdc)

Rating
Model GER010 GER020 GER040 GER100
Size, W x H x D(mm) 56×45×28 56×45×28 67×47×35 81×70×39
Contact Short-time Current 10A (continuously, 2mm2) 20A (continuously 2.5mm²) 40A (continuously, 10mm2) 100A (continuously, 35mm2)
(Over Current) 15A (2min., 2mm2) 30A (2min 2.5mm²) 60A (15min., 10mm2) 150A (15min., 35mm2)
  30A (30sec., 2mm2) 40A (15min 2.5mm²) 100A (2min., 10mm2) 225A (2min., 35mm2)
Max. Cut-off Current N / A N / A 400A at 450VDC (1cycle) 1,000A at 450VDC (1cycle)
Reverse Direction Cut-off N / A N / A -40A 200VDC
(1,000 cycles at 20 CPM)
-100A 200VDC
(1,000 cycles at 20 CPM)
Switch-off Life N / A N / A 120A 450VDC (100 cycles) 200A 450VDC (100 cycles)
Coil Pick-up Voltage
(at 20℃)
Max. 9VDC Max. 9VDC Max. 9VDC, 18VDC Max. 9VDC
Drop-out Voltage
(at 20℃)
Min. 1.2VDC Min. 1.2VDC Min. 1.2VDC, 2.4VDC Min. 1.2VDC
Max Power consumption 3.0W (at 12VDC) 3.0W (at 12VDC) 3.5W (at 12VDC) 6.5W (at 12VDC)
Expected life Mechanical Min. 150,000ops (at 60CPM) Min. 150,000ops (at 60CPM) Min. 200,000ops (at 60CPM) Min. 200,000ops (at 60CPM)
Electrical(Resistive Load) 10A, 450VDC 150,000cycles
(at 6CPM) (Only making)
10A, 450VDC 150,000cycles
(at 6CPM) (Only making)
40A, 450VDC, 1,000cycles
(at20CPM)
100A, 450VDC, 1,000ops
(at 20CPM)
N / A N / A N / A 40A, 450VDC, 20,000ops
(at 20CPM)
N / A N / A N / A N / A



GER(450VDC)
Model GER150 GER200 GER250 GER400
​Size, W x H x D(mm)​ 81×70×39 81×70×39 92×87×45 100×91×58
Contact Short-time Current 150A (continuously, 50mm2) 200A (contrnuously 50mm²) 250A (continuously,100mm2) 400A(continuously,150mm2)
(Over Current) 225A (15min., 50mm2) 300A (2min 50mm²) 350A (15min., 100mm2) 600A (7min., 150mm2)
  320A (2min., 50mm2) 400A (500sec 50mm²) 500A (2min., 100mm2) 800A (2min., 150mm2)
Max. Cut-off Current 1,500A at 450VDC (1cycle) 1,500A at 450VDC (1cycle) 2,500A at 400VDC (1cycle) 1,500A at 450VDC (1cycle)
Reverse Direction Cut-off -150A 200VDC
(500 cycles at 20 CPM)
-150A 200VDC
(500 cycles at 20 CPM)
-250A 200VDC
(1,000 cycles at 6 CPM)
-400A 200VDC
(1,000 cycles at 1 CPM)
Switch-off Life 300A 450VDC
(100 cycles at 1 CPM)
300A 450VDC
(100 cycles at 1 CPM)



400A 450VDC
(100 cycles at 1 CPM)
800A 450VDC
(200 cycles at 1 CPM)
Coil Pick-up Voltage
(at 20℃)
Max. 9VDC Max. 8VDC Max. 9VDC, 18VDC Max. 9VDC, 16VDC
Drop-out Voltage
(at 20℃)
Min. 1.2VDC Min. 1.2VDC Min. 1.2VDC, 2.4VDC Min. 1.2VDC, 2.4VDC
Max Power consumption 6.5W (at 12VDC) 6.5W (at 12VDC) 4W
(*inrush current: 2.9/
1.25A for 12/24V)
4.5W
(*inrush current: 4.2/
2.1A for 12/24V)
Expected life Mechanical Min. 200,000ops (at 60CPM) Min. 200,000ops(at 60CPM) Min. 200,000ops (at 60CPM) Min. 200,000ops (at 60CPM)
Electrical(Resistive Load) 150A, 450VDC, 1,000ops
(at 20CPM)
200A 450V 1,000ops
(at 6cpm)
250A, 450VDC, 1,000ops
(at 6CPM)
400A, 450VDC, 1,000ops
(at 6CPM)
15A, 450VDC, 50,000ops
(at 20CPM)
240A 50V 75,000ops
(at 6cpm)
100A, 450VDC, 10,000ops
(at 6CPM)
200A, 450VDC, 3,000ops
(at 12CPM)
N / A N / A N / A N / A
