Description

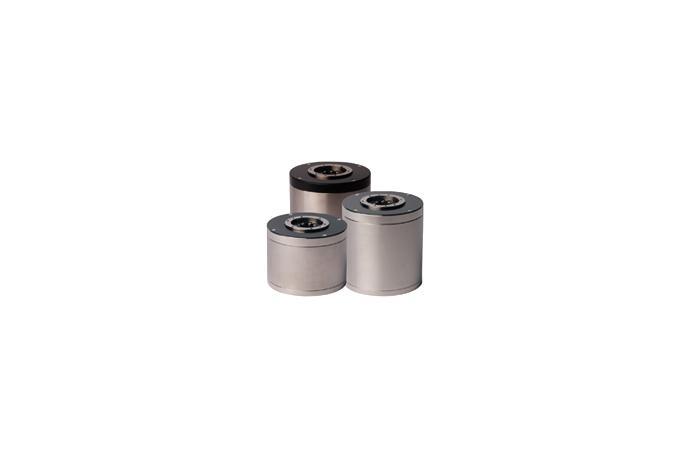

- 외경 110mm, 중공 20mm 내전형으로 설계되어 공간활용도 유리
- 최대 토오크 6Nm, 12Nm, 18Nm 3종
- 위치분해능 : 518,400 ppr~3,317,760 ppr
- 고정도 사양 대응 : 흔들림(런 아웃) 5㎛
- 광학식 엔코더 채용으로 고정밀화 실현
Specification
Model |
JTR1106 |
JTR1112 |
JTR1118 |
||
Performance Parameters |
Symbol |
Units |
|||
Continuous Torque |
Tc |
N·m |
2.0 |
4.0 |
6.0 |
Peak Torque |
Tp |
N·m |
6.0 |
12.0 |
18.0 |
Continuous Current |
IcTmax |
Arms |
1.0 |
1.0 |
1.0 |
Peak Current |
Ip |
Arms |
3.0 |
3.0 |
3.0 |
Torque Constant |
Kt |
Nm/Arms |
2.0 |
4.0 |
6.0 |
Motor Constant |
KM |
0.4 |
0.6 |
0.8 |
|
Thermal Resistance |
℃/W |
4.0 |
2.3 |
1.6 |
|
Max Speed* |
Vmax |
rps |
10.0 |
8.0 |
5.0 |
Resolution** |
ppr |
518,400 |
518,400 |
518,400 |
|
Accuracy |
arcsec |
±30 |
±30 |
±30 |
|
Repeatability* |
arcsec |
±2.5 |
±2.5 |
±2.5 |
|
Axial Run-out(No Load) |
㎛ |
30 |
30 |
30 |
|
Radial Run-out(No Load) |
㎛ |
30 |
30 |
30 |
|
Max Axial Load |
kg |
90 |
90 |
90 |
|
Max Moment Load |
N·m |
12 |
12 |
12 |
|
Rotor Inertia |
I |
kg·m² |
0.0007 |
0.0012 |
0.0023 |
Motor Weight |
Mm |
kg |
3.9 |
5.4 |
6.9 |
* Dependent on the encoder resolution.
** Option : 1,296,000 ppr, 3,317,760 ppr
