This product is manufactured by
DAE-BOONG ELECTRIC

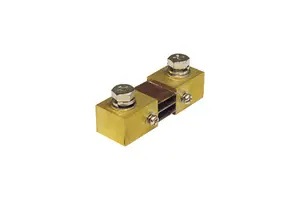

Shunt
Model Name
ME-10
Data
Drawing-Dae Boong Electric-Transformers-Shunt-ME-10
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
134971
Product Name
Shunt
Model Name
ME-10
Size
-
Weight
-
Product Details
Specification
| 1'st Current(A) | A | B | C | D | H | |
| 50mV | 60mV | |||||
| 200 | 65 | 68 | 45 | 17 | 12 | 8TAP x 2 |
| 300 | 65 | 68 | 45 | 20 | 12 | 8TAP x 2 |
| 400 | 65 | 68 | 45 | 20 | 20 | 8TAP x 2 |
| 500 | 75 | 78 | 50 | 25 | 20 | 8TAP x 2 |
| 600 | 75 | 78 | 50 | 30 | 20 | 8TAP x 2 |
| 800 | 75 | 78 | 50 | 30 | 28 | 8TAP x 2 |
| 1000 | 85 | 88 | 55 | 35 | 30 | 10TAP x 2 |
| 1200 | 95 | 98 | 55 | 40 | 30 | 10TAP x 2 |
| 1500 | 95 | 98 | 55 | 40 | 38 | 10TAP x 2 |
| 2000 | 115 | 118 | 60 | 50 | 40 | 10TAP x 2 |
| Option | ||||||
