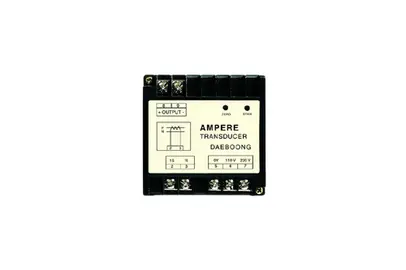

AC Ampere Transducer
Model Name
DAT-1A1A
Data
Drawing-Dae Boong Electric-Transducers-AC Ampere Transducer
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
134997
Product Name
AC Ampere Transducer
Model Name
DAT-1A1A, DAT-1A3A, DAT-1B1A, DAT-1B3A, DAT-3A1A, DAT-4A3A, DAT-3B1A, DAT-4B3A
Size
-
Weight
-
Product Details
Standard Product
| Model | Output | Source |
| DAT-1A1A | DC 4~20mA | 1Φ |
| DAT-1A3A | DC 0~20mA | 1Φ |
| DAT-1B1A | DC 4~20mA | 1Φ |
| DAT-1B3A | DC 0~20mA | 1Φ |
| DAT-3A1A | DC 4~20mA | 1Φ x 3EA |
| DAT-4A3A | DC 0~20mA | 1Φ x 3EA |
| DAT-3B1A | DC 4~20mA | 1Φ x 3EA |
| DAT-4B3A | DC 0~20mA | 1Φ x 3EA |
Input-Output Curve
Connections
Ordering Procedure
1. Connection
1 : 1Phase 2Wire
3 : 3Phase 3Wire
4 : 3Phase 4Wire
2. Input
A : 1A (0~1A AC)
B : 5A (0~5A AC)
3. Output
1 : 4~20mA DC
2 : 0~1mA DC
3 : Specify Current(0~20mA max.)
4 : 0~5V DC
5 : 1~5V DC
6 : Specify Voltage(0~10V max.)
4. Sensing type
A : Average Sensing
B : R.M.S Sensing(1Φ)
