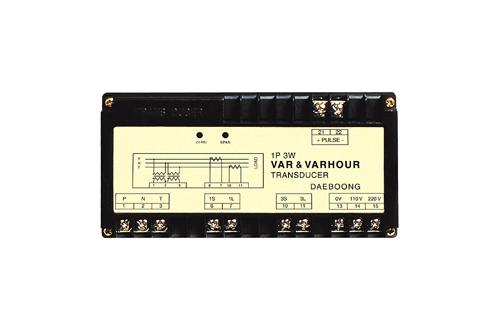

Var_Varhour Transducer
Model Name
DVVT-1BB11
Data
Drawing-Dae Boong Electric-Transducers-Var_Varhour Transducer
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
135015
Product Name
Var_Varhour Transducer
Model Name
DVVT-1BB11, DVVT-2AB11, DVVT-3AB11, DVVT-4CB11
Size
-
Weight
-
Product Details
Standard product
| Model | Output | Source |
| DVVT-1BB11 | DC 4~20mA, 1Pulse / 1Var hour | 1Φ 2W |
| DVVT-2AB11 | DC 4~20mA, 1Pulse / 1Var hour | 1Φ 3W |
| DVVT-3AB11 | DC 4~20mA, 1Pulse / 1Var hour | 3Φ 3W |
| DVVT-4CB11 | DC 4~20mA, 1Pulse / 1Var hour | 3Φ 4W |
Input-Output Curve
Connections
Ordering Procedure
1. Connection
1 : 1Phase 2Wire
2 : 1Phaes 3Wire
3 : 3Phase 3Wire
4 : 3Phase 4Wire
2. Input(Voltage)
| P x W | PT ratio | CAL.Watt Standard | Code |
| 1 x 2 | 110V | 600Var | A |
| 220V | 1200Var | B | |
| 1 x 3 | 110V | 1000Var | A |
| 3 x 3 | 220V | 2000Var | B |
| 380/110V | 1158Var | E | |
| 440/110V | 1000Var | A | |
| 3300/110V | 1000Var | A | |
| 6600/110V | 1000Var | A | |
| 154Kv/110V | 1000Var | A | |
| 22900/110V | 961Var | G | |
| 3 x 4 | 110/√3 | 1000Var | H |
| 208/√3 | 2000Var | K | |
| 380/√3 / 190/√3 | 2000Var | C | |
| 380/√3 | 4000Var | L | |
| 22900/√3 / 190/√3 | 1666Var | M | |
| 190/√3 | 1500Var | X | |
| other | other | S |
3. Input(Current)
A : 1A
B : 5A
4. Output(Var)
1 : 4~20mA DC
2 : 0~1mA DC
3 : Specify Current (0~20mA max.)
4 : 0~5V DC
5 : 1~5V DC
6 : Specify Voltage(0~10V max.)
5. Option(Varhour) : Only LGA Output
1 : 1Varhour / 1Pulse
2 : 1Varhour / 10Pulse
3 : 1Kvar / 1Pulse
