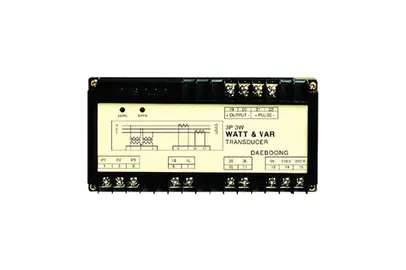

Watt_Var Transducer
Model Name
DWVT-1BB1
Data
Drawing-Dae Boong Electric-Transducers-Watt_Var Transducer
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
135017
Product Name
Watt_Var Transducer
Model Name
DWVT-1BB1, DWVT-2AB1, DWVT-3EB1, DWVT-3AB1, DWVT-4CB1, DWVT-4DB1, DWVT-4FB1, DWVT-4KB1
Size
-
Weight
-
Product Details
Standard Product
| Model | Output | Source |
| DWVT-1BB1 | DC 4~20mA | 1Φ 2W |
| DWVT-2AB1 | DC 4~20mA | 1Φ 3W |
| DWVT-3EB1 | DC 4~20mA | 3Φ 3W |
| DWVT-3AB1 | DC 4~20mA | 3Φ 3W |
| DWVT-4CB1 | DC 4~20mA | 3Φ 4W |
| DWVT-4DB1 | DC 4~20mA | 3Φ 4W |
| DWVT-4FB1 | DC 4~20mA | 3Φ 4W |
| DWVT-4KB1 | DC 4~20mA | 3Φ 4W |
Input-Output Curve
Connections
Ordering Procedure
1 .Connection
1 : 1Phase 2Wire
2 : 1Phaes 3Wire
3 : 3Phase 3Wire
4 : 3Phase 4Wire
2 .Input(Voltage)
| P x W | PT ratio | CAL.Watt Standard | Code |
| 1 x 2 | 110V | 600W | A |
| 220V | 1200W | B | |
| 1 x 3 | 110V | 1000W | A |
| 3 x 3 | 220V | 2000W | D |
| 380/110V | 1158W | E | |
| 440/110V | 1000W | A | |
| 3300/110V | 1000W | A | |
| 6600/110V | 1000W | A | |
| 154Kv/110V | 1000W | A | |
| 22900/110V | 1961W | G | |
| 3 x 4 | 110/√3 | 1000W | H |
| 208/√3 | 2000W | K | |
| 380/√3 / 190/√3 | 2000W | C | |
| 380/√3 | 4000W | L | |
| 22900/√3 / 190/√3 | 1666W | M | |
| 190/√3 | 1500W | X | |
| other | other | S |
3. Input(Current)
A : 1A
B : 5A
4. Output
1 : 4~20mA DC
2 : 0~1mA DC
3 : Specify Current (0~20mA max.)
4 : 0~5V DC
5 : 1~5V DC
6 : Specify Voltage(0~10V max.)
