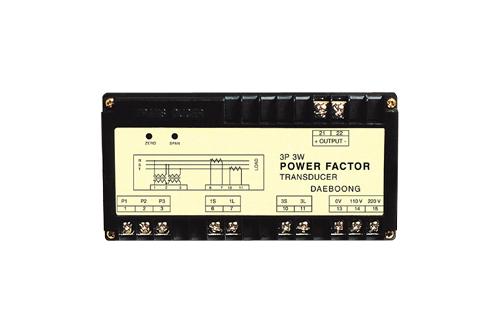

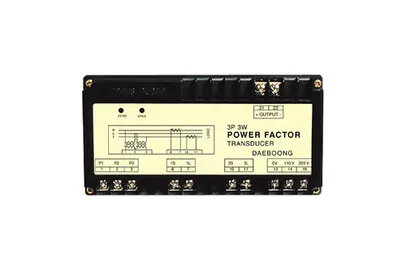

Power Factor Transducer
Model Name
DPT-1BB1
Data
Drawing-Dae Boong Electric-Transducers-Power Factor Transducer
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
135018
Product Name
Power Factor Transducer
Model Name
DPT-1BB1, DPT-2AB1, DPT-3AB1, DPT-3BB1, DPT-4AB1, DPT-4BB1
Size
-
Weight
-
Product Details
Standard Product
| Model | Output | Source |
| DPT-1BB1 | DC 4~20mA | 1Φ 2W |
| DPT-2AB1 | DC 4~20mA | 1Φ 3W |
| DPT-3AB1 | DC 4~20mA | 3Φ 3W |
| DPT-3BB1 | DC 4~20mA | 3Φ 3W |
| DPT-4AB1 | DC 4~20mA | 3Φ 4W |
| DPT-4BB1 | DC 4~20mA | 3Φ 4W |
Input-Output Curve
Connections
Ordering Procedure
1. Connection
1 : 1Phase 2Wire
2 : 1Phaes 3Wire
3 : 3Phase 3Wire
4 : 3Phase 4Wire
2. Input(Voltage)
COSΦ = 0.5(Lead)-1-0.5(Lag)
A : AC 110V(190/√3)
B : AC 220V(380/√3)
C : AC 63.5V(110/√3)
D : Others
3. Input(Current)
A : 1A
B : 5A
4. Output
1 : 4~12~20mA DC
2 : 0~0.5~1mA DC
3 : Specify Current (0~20mA max.)
4 : 0~2.5~5V DC
5 : 1~3~5V DC
6 : Specify Voltage(0~10V max.)
