This product is manufactured by
DAE-BOONG ELECTRIC

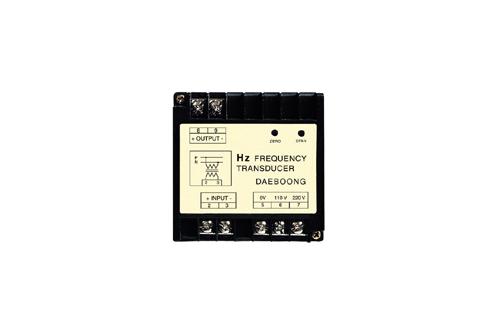

Frequency Transducer
Model Name
DFT-AA1
Data
Drawing-Dae Boong Electric-Transducers-Frequency Transducer
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
135023
Product Name
Frequency Transducer
Model Name
DFT-AA1, DFT-AB1, DFT-BA1, DFT-BB1
Size
-
Weight
-
Product Details
Standard Product
| Model | Output | Source |
| DFT-AA1 | DC 4~20mA | 1Φ |
| DFT-AB1 | DC 0~20mA | 1Φ |
| DFT-BA1 | DC 4~20mA | 1Φ |
| DFT-BB1 | DC 0~20mA | 1Φ |
Input-Output Curve
Connections
Ordering Procedure
1 .Frequency
A : 55~65Hz(60Hz)
B : 45~55Hz(50Hz)
2 .Input(Voltage)
A : AC 30~300V
B : Option
3 .Output
1 : 4~20mA DC
2 : 0~1mA DC
3 : Specify Current(0~20mA max.)
4 : 0~5V DC
5 : 1~5V DC
6 : Specify Voltage(0~10V max.)
