ENVIRONMENTALLY SEALED CONNECTOR FOR HARSH INDUSTRIAL USE

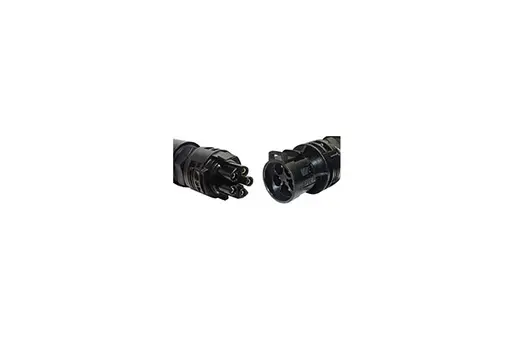

The Anderson Power Products 5 Position Mini PL SPEC Pak® is an environmentally sealed IP68 connector delivering up to 23 amps at 600V. This series can handle wires from 24 to 12 AWG. The APP 5 Position Mini PL SPEC Pak is very rugged, offering a touch-safe, UV and flame-resistant shell to protect contacts from extreme conditions. This Mini PL SPEC Pak connector offers a manual release latch to prevent accidental un-mating, and uses PowerMod® gold-plated pin and socket contact technology. Typical Mini PL SPEC Pak applications include marine, lighting, transportation, industrial automation, solar power, wind power and ground support.
Features
- Manual Release Latch
Prevents accidental un-mating
- Pin & Socket Contacts
Gold plated for greater connectivity
- 3 Pin Lengths Available
Offers sequencing capabilities
- Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides
- Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
Materials & Finishes
Weatherability
UL 764C / 12mm F1
Socket Body
Copper Alloy, 200 μ inch Sn over Ni
Socket Contact
Copper Alloy, 30 μ inch Au over Ni
Pin
Copper Alloy, 30 μ inch Au over Ni
NOTE:
Sn = Tin
Ni = Nickel
Au = Gold
Electrical Data
Current Rating (Amperes)
UL 1977: 23
CSA (30°C Rise): 16
Voltage Rating
UL 1977 (AC/DC): 600
Dielectric Withstanding (AC)
2200
Contact Resistance (Average)
3 Milliohms
File No. E26226.
CSA Certified File No. LR25154
![](https://cdn.komachine.com/media/product-desc/cc2ea99e-2d47-49a0-b1d6-a47b6ecc9199)
![](https://cdn.komachine.com/media/product-desc/0beb3b6f-51bd-4a7f-ad26-1b9f8b4bfdf4)
Mechanical
Environmental Seal
IEC IP 68
UL 50E
Wire Size
24 to 12 AWG
0.5 to 2.5 mm²
Sealing Options
Sealing Gland
Operating Temperature
-20 to 105°C
-4 to 221°F
Mating Cycles (no load)
500
Contact Retention Force
10 lbf
44 N
Mating Force (nominal)
3.5 lb
16 N
Touch Safe (UL 1977
Sec. 10.2)
Pass
Latch Strength (nominal)
34 lb
155 N
