POWERMOD® High Power CONNECTORS (210 - 450 AMPS)

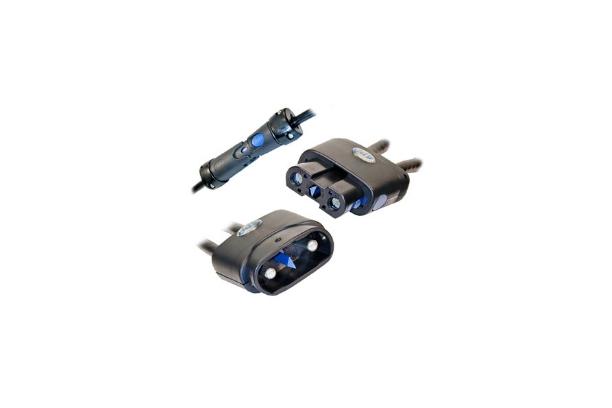

Anderson PowerMod® HP connectors are the innovative New Generation of High Power connectors for the Electronics Industry. The Anderson PowerMod High Power connector family provides; cost effective reliability, superior safety and ergonomics, with broad design flexibility. The positive latch and optional strain relief of Anderson PowerMod® High Power connectors ensure superior reliability. The contacts are extremely durable and rated for circuit interruption (true hot-pluggable). Our touch-safe female housing design with integral latch release presents a new standard for high power connector safety and ergonomics. The housings are black UL94 V-0 material with latches in blue for clear identification.

The Anderson PowerMod® High Power connector family offers excellent design flexibility with the availability of 10 different connector types.



Features

• 210 to 450 amps UL rating
• Positive latching
• Available in straight, right angle, panel mount, blind mate and bus bar styles
• Touch safe female connectors
• Polarized dual pole connectors with optional hex key
• Strain relief option
• Low connector mating forces
• Silver plated, high conductivity contacts
• Ease of assembly



Benefits

• Integral latches with ergonomic release provide over 50 lbs retention
• The flexibility of the PowerMod® HP system serves a broad range of electronics applications
• Provide IP20 protection for safe, energized use outside the electronics cabinet
• Dual pole housings prevent shorting from reverse mating and the optional hex key allows the user to create unique mating schemes
• Reduces risk of wire insulation creep and reduces transmission of wire loads to contacts improving service life
• Connectors are easily mated and unmated
• Offers greater longevity for high-power, elevated temperature applications
• Intuitive design allows for simplicity of assembly



Specifications



Mechanical Drawing



Mechanical Drawing
