MULTI AXIAL ROTATIONAL CONNECTOR

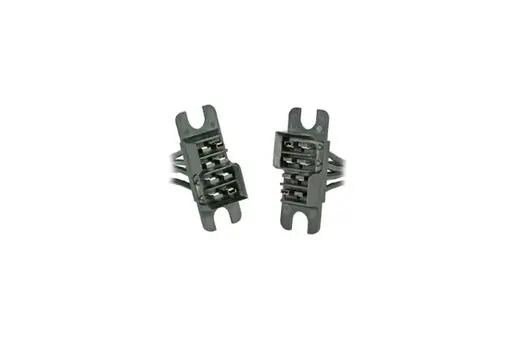

The Anderson Power Products Multi Axial Rotational Connector “MARC” features 8 Powerpole® circuits integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses industry leading flat wiping contacts. The MARC connector series is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre-mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic.



Features

• Rotational blindmate error correction
• Sequential mating
• Mechanically keyed housing
• Rugged and durable
• Interchangeable genderless design



Benefits

• Enables blindmating from 2 independently rotating axes with 0.100" of error correction
• Can be configured with up to 8 power and signal or 6 power and signal circuits and 2 pre mate contacts
• Ensures proper mating
• The connector is rated to 10,000 mating cycles and constructed of chemically resistant PBT plastic
• Makes assembly quick and easy and reduces number of parts stocked



Specifications

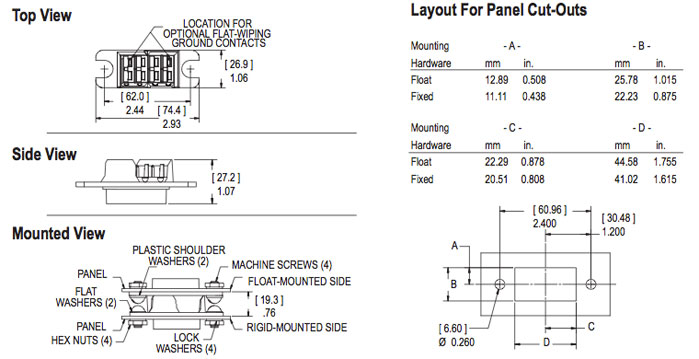

Mechanical Drawing
