POWERPOLE® PAK CONNECTOR (UP TO 45 AMPS)

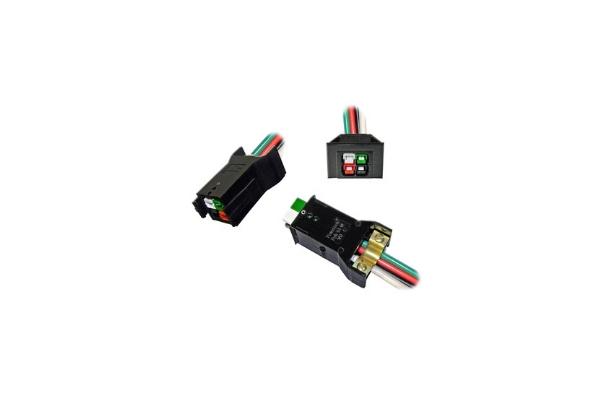

Anderson Power Products Powerpole® Paks are high impact and corrosion-resistant black thermoplastic outer shells for containing our 10 to 45 amp Powerpole® connectors. They allow easy connection and disconnection of electrical equipment in commercial and industrial applications. Cable clamps provide strain relief and integral latches prevent accidental disconnection of your equipment. The three housings – Plug With Latch, Plug Without Latch, and Snap-In Receptacle – accommodate 2 to 10 circuits for orderly cable management and “clean looking” connectors.



Features

• Corrects for .45" misalignment
• Dovetail contact housings
• Wide range of contact sizes



Benefits

• Allows units to self-align during Blindmate (Rack & Panel applications)
• Can be configured in almost any combination to provide signal power and make first / break last circuits as well as unique keying
• Provides engineers flexibility during system design



Specifications

* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors



Mechanical Drawing
