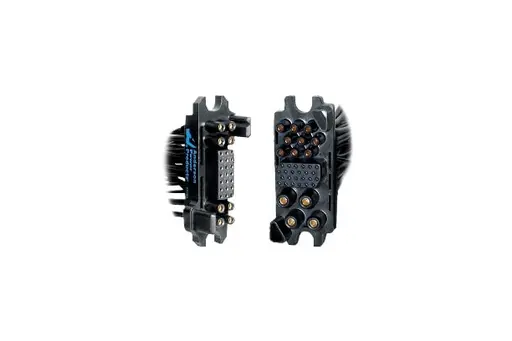

HEAVY DUTY POWER DRAWER® CONNECTOR (UP TO 75 AMPS)

Anderson Power Products line of Power Drawer connectors gives our customers more selections than ever to meet their power connector needs. These cost effective, mixed power and signal Power Drawer connectors are manufactured using the same high quality standards that have made APP a leader in the power connector industry for years.

The connector's pin contacts can be specified for first-mate and last-mate connection, allowing the electronic system to be grounded and mating electronically verified before the power circuits are energized.

Power Drawer connectors can be used for a wide range of drawer-type applications such as on N + 1 power supply and rectifier systems, mainframe computers, telecommunications, and network equipment. If power and signal is required, let Anderson Power Products be "Your Best Connection."



Features

• Industry standard contacts
• Wide selection of contact termination
• First-mate and last-mate capability
• Integral guide pins
• Optional floating mount



Benefits

• Allows for cross mating with competitive product
• Provides the designer a wide variety of packaging options
• Grounds and powers the system before mating of signal circuits
• Corrects misalignment during blind mating
• Reduces fatiguing stress on connectors during blindmating



Specifications



Mechanical Drawing
