HOT PLUG RATED DC CONNECTOR

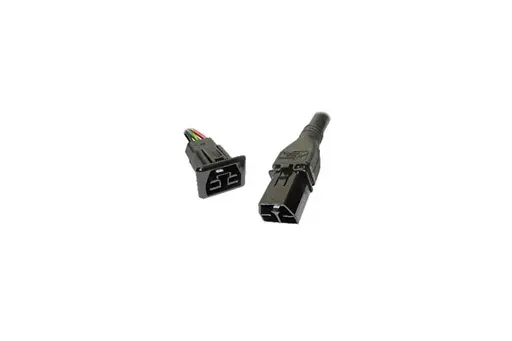

The Anderson Power Saf-D-Grid plug and receptacle provides for the direct connection of DC electronic devices to a DC micro-grid powered by renewable energy or high efficiency DC sources. The Saf-D-Grid connector meets international safety requirements for hazardous, low voltage applications including UL 950 and IEC 60950. The Saf-D-Grid receptacle connector has a depth designed for touch safety and arc protection and is designed to replace the IEC320 C14 inlet connector for DC power sources up to 600 volts. The APP Saf-D-Grid receptacle has the same height and width as the IEC320 C14 inlet connector and snaps into the standard 19.9mm by 26.8mm panel cut-out.



Features

• Touch Safe
• Arcing Protection
• Hot Plug Rated
• First Make, Last Break Ground Contact
• Integral Latch



Benefits

• Minimizes the risk of personal contact with a hazardous voltage. Passes UL & IEC finger probe (plug & receptacle) and 3mm probe tests (receptacle).
• Housings contain the arc if connectors are mated or unmated while under load minimizing risk to personnel.
• The connectors are hot plug rated for both electronic (capacitive) and electrical (resistive) loads.
• Provides the safety of an earthing path before engagement of the power contacts.
• Connectors cannot be accidentally unmated, preventing unwanted power loss to critical equipment.



Specifications



Mechanical Drawing
