2 WAY SPLITTER, 20 AMP POWERPOLE® CONNECTOR

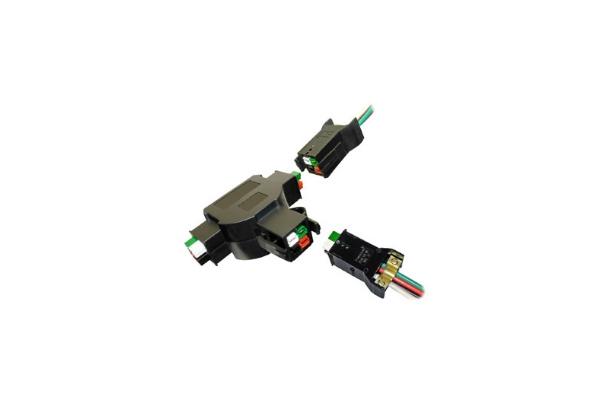

The Anderson Power Products “T” Pak Connector effectively splits electrical current from one incoming circuit into two outgoing circuits. The “T” Pak is designed to be used with APP's 4 position Powerpole® Paks to provide a flexible system for directing power while being environmentally sealed. The outer shell is molded of the same high-impact and corrosion resistant thermoplastic as the Powerpole® Pak. Each unit comes pre- assembled for a 20A, 3-phase AC configuration. Standard configurations include red, black, white and green (ground housing) connectors.

The electrical connections are made using APP PP15/45 Powerpoles and Premate Ground Powerpole. The “T” Pak allows for easy installation, convenient connection and quick disconnection of electrical equipment for industrial and commercial applications. Mounting holes are provided to allow the unit to be mounted in any location and integral latches prevent accidental disconnection and proven strain relief.



Features

• 2 Way electrical splitter
• Works with all 15/45 powerpoles
• Integral positive latches
• AC/ DC operation



Benefits

• One incoming circuit and two outgoing circuits
• May be configured utilizing any of our 10 to 45 amp powerpole products including standard, finger proof, ground and PP4x signal connectors.
• Ensures reliable connections and prevents accidental disconnection.
• Dual pole housings prevent shorting from reverse mating and the optional hex key allows the user to create unique mating schemes



Specifications

* When connected with Powerpole Pak Plugs utilizing #12 AWG wire contacts
** Contact us for higher temperature rated connectors



Mechanical Drawing
