ANDERSON POWER PRODUCTS
High Power SPEC Pak® Connectors (75 To 260 Amps)
모델명
시리즈
Connectors
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명

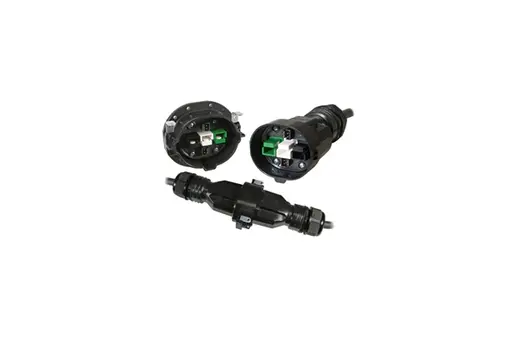

HIGH POWER SPEC PAK® (75 TO 260 AMPS)
This Anderson Power Products High Power SPEC Pak® uses rugged and environmentally sealed (IP68) shells to protect APP® Powerpole® contacts and housings. Customer configured SPEC Pak® High Power Connectors are capable of up to 260 amps and may be used anywhere a rugged and/or waterproof high power, signal and ground interconnect solution is required.
The SPEC Pak® High Power shell accepts 75 to 180 amp Powerpole® contacts and up to 8 auxiliary contacts. The wide range of Powerpole® housing colors and contact sizes, coupled with the available Powerpole® insert holders, offers the user a wide array of SPEC Pak design options. Wire sizes which can accommodate a range from 24 to 3/0 AWG (0.25 to 85.0 mm²). SPEC Pak® High Power is highly configurable with thousands of design options in a single interconnect.
Features
- Environmentally sealed (IP68) shells
- Rugged, safe & versatile shells
- 260A per contact at 600 volts
- Power, signal & ground contacts available
- Up to 6 power circuits with 8 signal circuits
- 3 standard insert arrangements available
- Color-coding capabilities for ease of assembly
- Other configurations available
Specifications
Mechanical Drawing
