Extreme Power SPEC Pak® Connectors (75 To 310 Amps)

모델명

시리즈

Connectors


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


+1-978-422-3801

제품 상세 설명

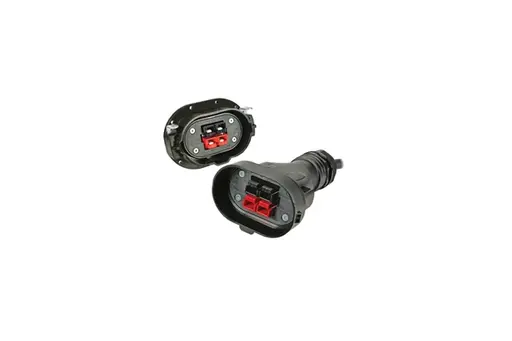

EXTREME POWER SPEC PAK®(75 TO 310 AMPS)

The Anderson Power Products Extreme Power SPEC Pak® uses rugged and environmentally sealed (IP68) shells to protect APP Powerpole® contacts and housings. Customer configured SPEC Pak® Extreme Connectors are capable of up to 310 amps and may be used anywhere a rugged and/or waterproof high power, signal and ground interconnect solution is required.

The SPEC Pak® Extreme shell accepts 75 to 180 amp Powerpole® contacts. The wide range of Powerpole® housing colors and contact sizes, coupled with the available Powerpole® holders, offers the user a wide array of design options. Flexibility can be enhanced by replacing a PP120 housing with the PP 15/45 adapter to provide auxiliary signal options. Wire sizes ranging from 20 to 3/0 AWG (0.5 to 85.0 mm2) can be accommodated. SPEC Pak® Extreme is highly configurable with thousands of design options in a single interconnect.



Features

  • Environmentally sealed (IP68) shells
  • Rugged, safe & versatile shells
  • 310A per contact at 600 volts
  • Power, signal & ground contacts available
  • Up to 9 power circuits
  • 4 standard insert arrangements available
  • Color-coding capabilities for ease of assembly
  • Other configurations available

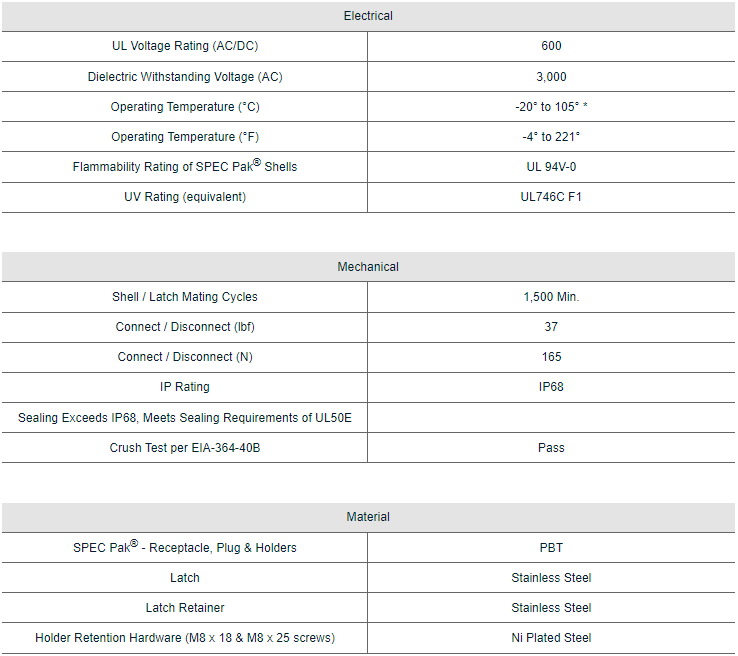

Specifications



Mechanical Drawing
