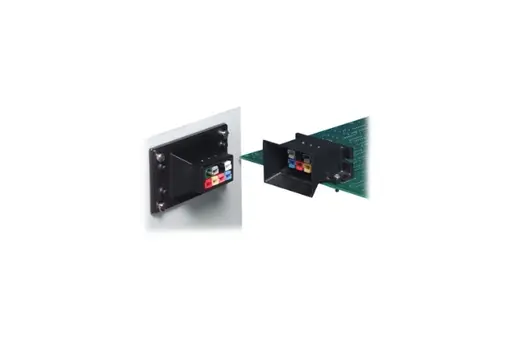

BLINDMATE POWERPOLE® PAK CONNECTOR (UP TO 45 AMPS)

Anderson Power Products® (APP) now offers Powerpole® Pak Blindmate connectors for wire to printed circuit board applications. These Powerpole® Pak Blindmate connectors correct for up to .45" of misalignment.

The Powerpole® Pak Blindmate connector was a custom assembly for unique power requirements in the Communications and Uninterruptible Power Supply (UPS) markets. It can now be ordered as individual components enabling customers to customize these Powerpole® Pak Blindmate connectors for unique applications.



Features

• Positive latching
• Variety of contact sizes
• Integral strain relief



Benefits

• Provides security in applications where shock and/or vibration may be severe
• Enables flexibility in wiring sizes and allows customization
• Organizes individual wires and reduces risk of wire breakage



Specifications

* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors
**** Based on 10 AWG



Mechanical Drawing
