HIGHLY CONFIGURABLE, RUGGED AND ENVIRONMENTALLY SEALED (IP68)

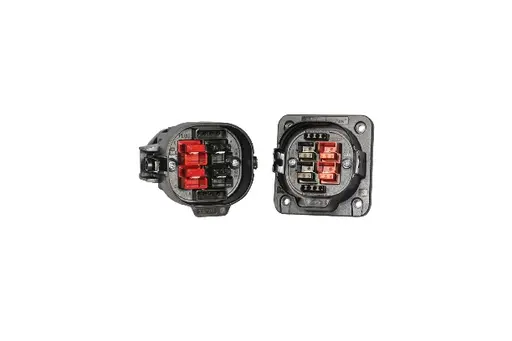

Like the other connectors in the SPEC Pak® family, the Mid Power SPEC Pak is rugged and environmentally sealed (IP68). The Mid Power SPEC Pak leverages APP’s core Powerpole® flat wiping contact along with pin and socket technology, and has power handling capabilities up to 80 amps at 600 volts, AC or DC, with signal, making them suitable for 3 phase AC power distribution, motor, controller or Industrial equipment applications.

The environmentally sealed (IP68) shells are made from PC/PBT blended materials and also have a weatherability rating of F1, and flame resistance rating of V-0 allowing for operating temperatures of -40 to 105°C (-40 to 221°F). The wire to wire, and wire to panel configurations feature a metal latch to prevent accidental un-mating. This highly configurable Mid Power SPEC Pak accepts up to 4 Powerpole housings, available in a wide array of colors providing color coding options for ease of assembly.

The Mid Power SPEC Pak is highly configurable providing users with a multitude of flexible design solutions in a single interconnect.



Features

• 1 - Chemical & UV Resistant Ruggedized Shells
  Wire to Wire Configurations
  Wire to Panel Configurations
• 2 - Auxiliary Contacts for Signal and/or Sequencing
  (up to 8)
• 3 - Power Contacts
  (up to 4)
• 4 - Sealing Gland to Ensure (IP68) Environmental Seal
• 5 - Color Coded Powerpole® Housings to Match Wire Colors
• 6 - Stainless Steel Latches to Prevent Accidental Unmating
• 7 - IP68 Panel Mount Receptacle Gasket
• 8 - Sealing O-Ring Ensures (IP68) Environmental Seal



Materials & Finishes

NOTES: (1) - Integral Signal holders that holds up to 8 pins and 8 sockets



Electrical Data

NOTES:
(1) - Integral Signal holders that holds up to 8 pins and 8 sockets
(2) - Based on 6 AWG
(3) - Based on 6 AWG 1-1/4" distance between probes
(4) - Based on 20 AWG
(5) - Hot Plug testing completed using individual Powerpole® housings and contacts, not installed in SPEC Pak® shells.



Mechanical

NOTES:
(1) - Integral Signal holders that holds up to 8 pins and 8 sockets
