PCB 25 POWERPOLE® CONNECTOR (UP TO 25 AMPS)

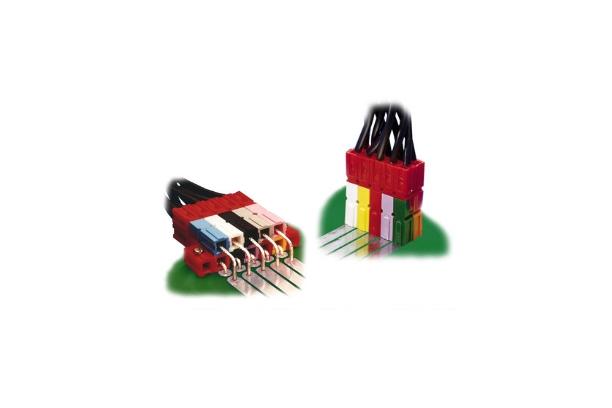

Anderson Power Products™ PCB connectors, when utilized with the Powerpole® 15/45 connector housings, provides a reliable wire to board connection. These PCB connectors are rated at 25 amps, 600 volts, AC/DC. This contact is available in both straight and right angle terminations for perpendicular and parallel mounting and is ideal for all applications that require high current PCB connectors.



Features

• Straight & right angle terminals
• Tin plated copper contacts
• Fits standard housing & accessories
• Two level right angle contacts



Benefits

• Flexibility of parallel or perpendicular mounting to the PCB
• Minimal contact resistance at high currents
• Allows for configurations that can be color coded & polarized
• Duel level right angle Powerpole® assemblies provide high power density



Specifications

* See Temperature Rise Chart. Based on 0.002 in² copper foil on PCB & 12AWG wire cross-section.



Mechanical Drawing
