RELIABLE WIRE-TO-BOARD PCB CONNECTION

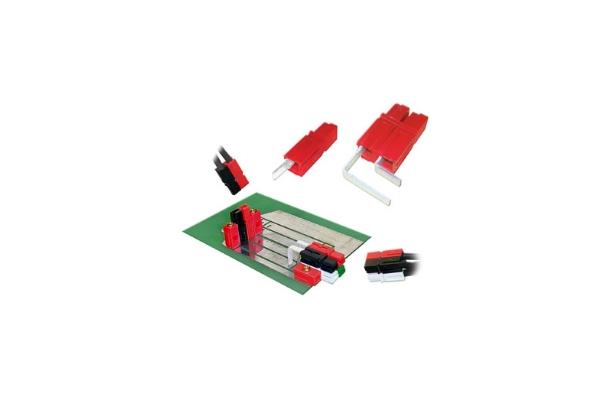

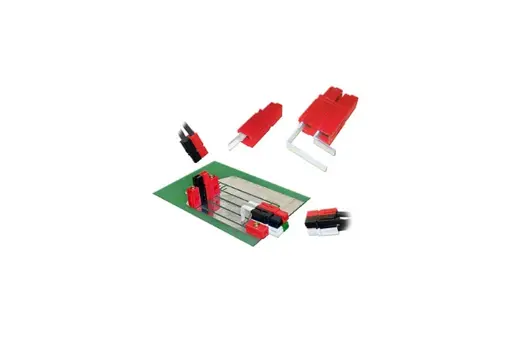

Anderson Power Products™ High Current printed circuit board (PCB) contact series, when utilized with the Powerpole® 15/45 connector housings, provides a reliable wire to board PCB connection. They are UL Recognized at 45 amps, AC or DC.
These wire to board connectors may be configured in 1 and 2 row configurations, in both vertical and right angle mounted terminations. These wire to board connectors provide an ideal solution for applications that require high current connections to a PCB.
Anderson™ PCB Connector Features:
- Vertical and right angle terminations - allows for design flexibility
- Tin plated copper contacts - minimal contact resistance at high currents
- Fits standard housing & accessories - allows for configurations that can be color coded & polarized
- Two right angle stacking bends - allows two rows parallel stacking of connectors on the PCB
- Quick disconnect - avoids the need for unfastening ring type terminals
- Snap-On interface - ensures foolproof assembly and proper connection
- Vertical mini-power claw UL rated - for current interruption (hot-plug) so that equipment can be hot swapped
- Anti-static packaging - meets electronics industry PCB requirements
- Vacuum packaging - prevents tarnishing of contacts during shelf life
Features
- Current rating 45 amps
- Vertical and right angle terminations
- High durability
- Offered in pre-assembled 1 and 2 row configurations
- Individual housings and contacts also sold separately
Benefits
- Enables high current connections directly to the PCB
- Allows for design flexibility
- Rated up to 1,500 cycles (no load)
- Under Load (Hot Plug 250 cycles @ 120V)
- Reduces assembly costs of housings and contacts
- Pre-assembled configurations prevent accidental separation of housings
- Allows for customization of configurations
- Allows for color coding of housings to wires for ease of manufacturing
Specifications
![](https://cdn.komachine.com/media/product-desc/94ea9c95-7ca2-4a62-9a3a-f125c53e0635)
Mechanical Drawing
![](https://cdn.komachine.com/media/product-desc/0a2ee064-b433-4d33-beea-2ed74356d0be)
