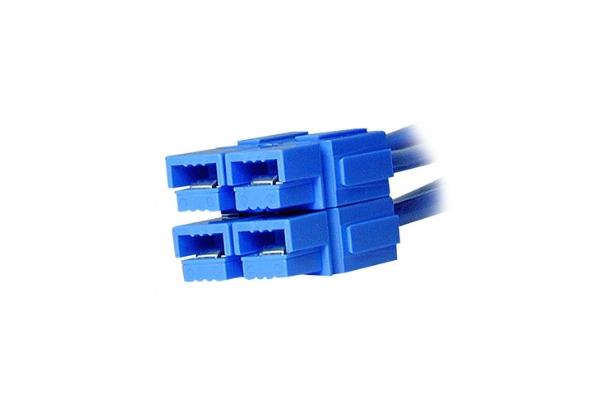

TOUCH SAFE HIGH VOLTAGE STACKABLE CONNECTORS

Anderson Power Products™ 15/45 Finger Proof stackable connectors are designed specifically for high voltage applications where personal safety is critical. This Anderson Power Products™ 15/45 stackable connector meets the accessibility requirements of UL1977 section 10.2 and is recommended for applications over 50 volts. These Anderson Power Products™ 15/45 stackable connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. Anderson Power Products™ 15/45 stackable connectors provide 600 Volts continuous AC or DC operation. Wire sizes range from #10 to #20 AWG (5.3 to .5 mm2). Contacts are available in reeled and loose piece, to support production needs from low to high volumes.



Features

• Positive latching
• Variety of contact sizes
• Integral strain relief



Benefits

• Provides security in applications where shock and/or vibration may be severe
• Enables flexibility in wiring sizes and allows customization
• Organizes individual wires and reduces risk of wire breakage

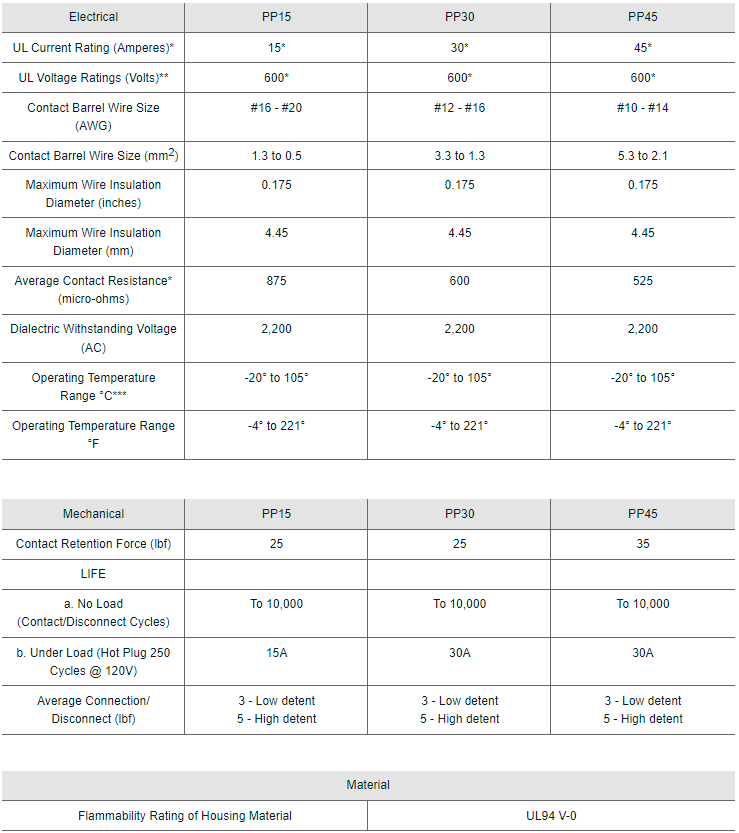

Specifications

* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature-rated connectors



Mechanical Drawing
