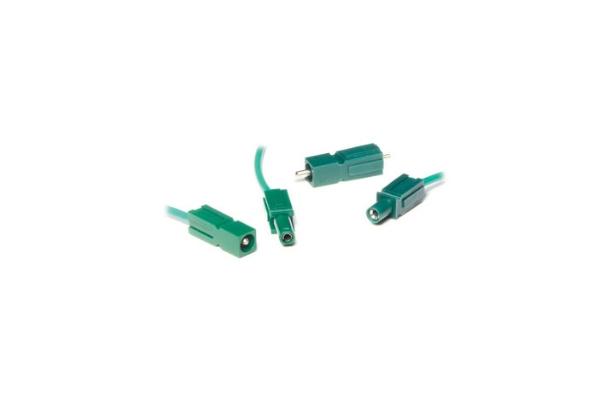

COST-EFFECTIVE, VERSATILE PIN & SOCKET CONNECTOR

Powerpole® pin and socket connectors by Anderson Power Products™ provide cost-effective reliability, design flexibility and safety. These pin and socket connectors were designed as ground terminal for make-first/break-last connections and feature an interchangeable genderless design. A flat wiping contact system allows for minimal contact resistance at high current, with wiping action that cleans contact surfaces during connection/disconnection.

The dovetail feature allows you to interlock housings into vertical and horizontal configurations (can be assembled with standard Powerpole® PP15, Powerpole® PP30 and Powerpole® PP45 connectors), providing unique variations that are specific to each project.

The housings are modular and interchangeable, genderless interconnects. Insert contacts into housings and plug together for a low-cost solution to power interconnection. Powerpole® modular pin and socket connectors are available in 10 and 30 amp ratings for use through 600 Volts continuous, AC or DC operation.



Features

• Make-first/Break-last connection
• Green housing
• Molded-in dovetails
• Silver plated contacts
• UL94 V-0 housing material



Benefits

• Provides safety and system integrity
• Indicates ground terminal
• Can be assembled into "keyed" configurations to preclude misconnections
• Offers greatest longevity when using high power, elevated temperature applications
• Provides security in knowledge the connector chosen meets strict UL flammability ratings



Specifications

* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors
**** Based on 10 AWG



PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) MECHANICAL DRAWING PP 10



PIN & SOCKET PP 10/30 POWERPOLE® CONNECTOR (UP TO 30 AMPS) MECHANICAL DRAWING PP 30
