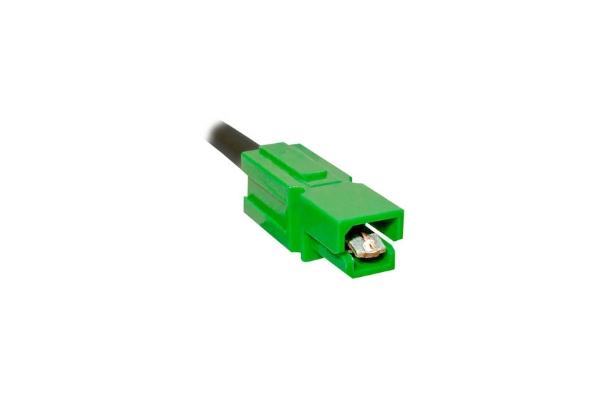

FLAT WIPING PREMATE GROUND CONNECTOR

Designed with the same time-tested flat wiping technology as standard Powerpoles, the Anderson Power Products™ Multipurpose Powerpole® contact is a make-first/ break-last connection when used in a multipole configuration with standard 15/45 Powerpoles. The dovetailed housing allows you to interlock multiple housings into vertical or horizontal connector banks specific to your project requirements.

Anderson Powerpole™ connectors provide 600 Volts continuous AC or DC operation. This contact accommodates wire sizes from #14 to #10 AWG (1.5 to 4 mm²). Contacts are available reeled or loose piece to accommodate production needs.



Features

• Make-first / break-last connection when used in conjunction with our standard 15/45 Powerpoles
• Housings available in green (US standard) or brown (EU standard)
• Molded-In dovetails
• UL listed for grounding



Benefits

• Provides safety and system integrity
• Visual indication of ground terminal
• Can be assembled with standard Powerpole® 15/45 housings to make pregrounded and multipole configurations
• For use in pre-mate ground, signal, or auxiliary control applications



Specifications

* Both AC & DC Voltage
** Contact us for alternative material



Mechanical Drawing
