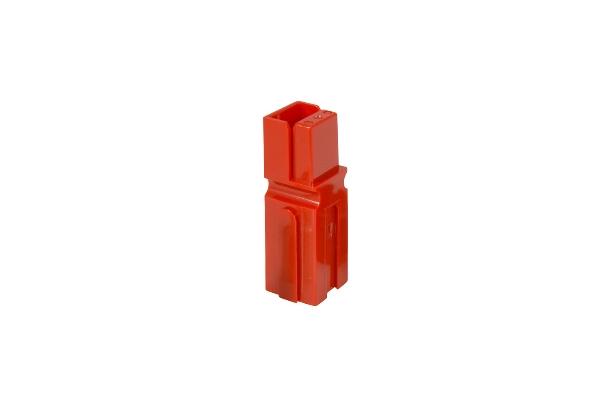

PP 75 POWERPOLE® CONNECTOR HOUSINGS (UP TO 120 AMPS)

The Anderson Power Products™ Powerpole® connector provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. PP75 Powerpole® Connector housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications or for low insertion/ withdrawal force applications. These housings include the capability to secure Powerpole® housings to each other and to mounting pads.

The housings are modular and genderless. This Powerpole® connector series provides 600 Volts continuous, AC or DC operation. Wire sizes range from #6 to #16 AWG (13.3 to 1.3 mm²). Powerpole® connector Contact are available in reeled and loose piece designs to support all production needs from engineering prototype, low volume and high volumes products. Low-detent contacts are also offered for low insertion/withdrawal force applications.



Features

• Flat wiping contact system
• Colored modular housings
• Molded-In dovetails



Benefits

• Minimal contact resistance at high current, wiping action cleans contact surface during connection/disconnection
• Provides visual identification of proper mating connector
• Can be assembled with standard Powerpole® 15/45 housings to make pregrounded and multipole configurations
• Secures individual connectors into "keyed" assemblies which prevents misconnection with similar configurations

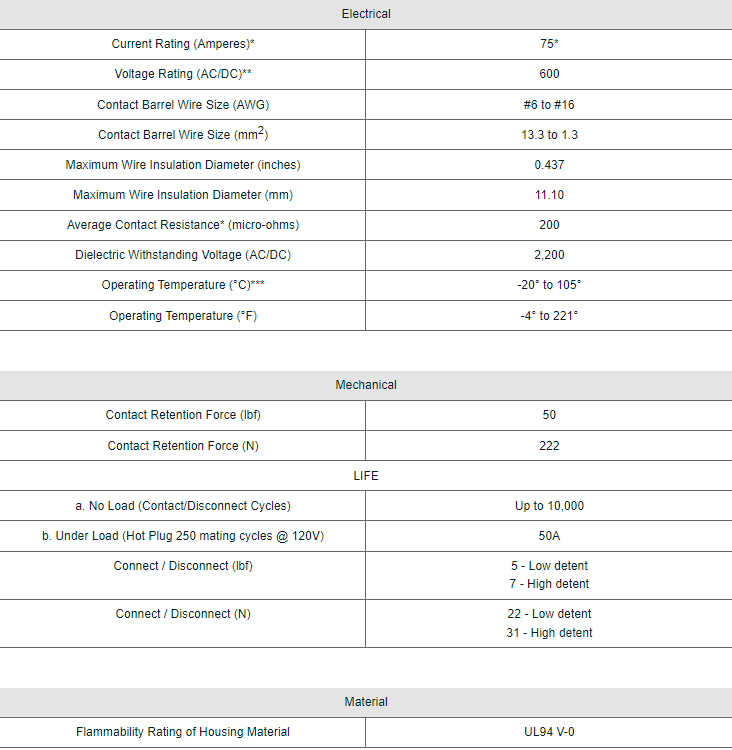

Specifications

* UL Rated for 75°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors



Mechanical Drawing
