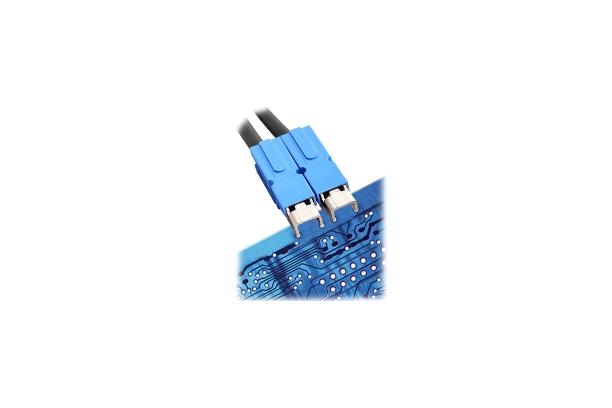

PCB 75 POWERPOLE® CONNECTOR (UP TO 55 AMPS)

The innovative design of our Powerclaw® family of wire to board connectors for the power electronics market makes connecting and disconnecting a snap, enabling safe and convenient "hot swapping" of this wire to board connector during equipment maintenance without the need to power down. Compact and robust, they're rated at 55 amps for single pole and 50 amps for multipole connections.

Our mini horizontal and vertical Powerclaw® contacts offer the same high current capacity as our original Powerclaws while providing the design engineer more options when board real estate is at a minimum.



Features

• Quick disconnect
• Snap-On interface
• Vertical mini-Powerclaw® UL rated
• Anti-static packaging
• Vacuum packaging



Benefits

• Avoids the need for unfastening ring type terminals
• Ensures foolproof assembly and proper connection
• For current interruption (hot-plug) so that equipment can be hot swapped
• Meets electronics industry PCB requirements
• Prevents tarnishing of contacts during shelf life

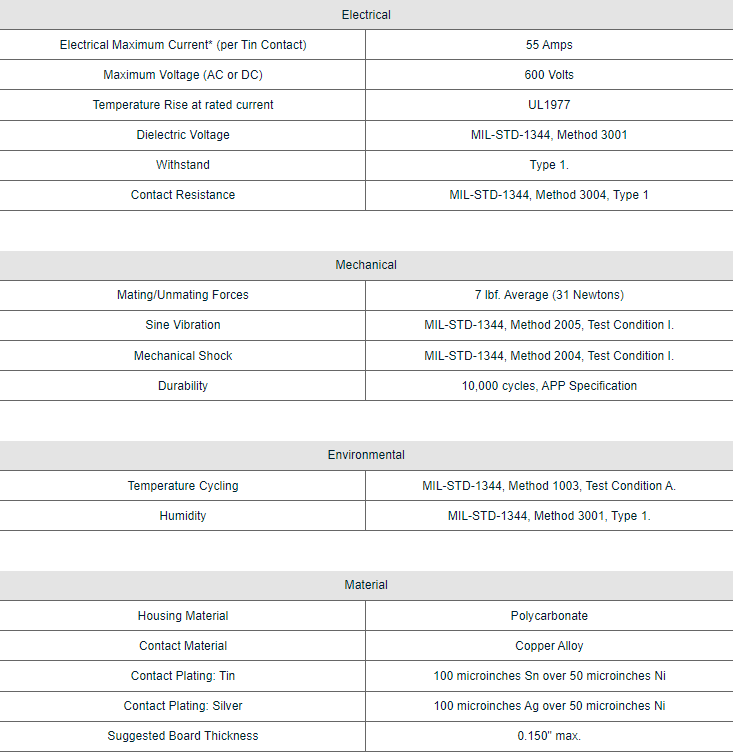

Specifications

* Contact us for ratings* Contact us for ratings



Mechanical Drawing
