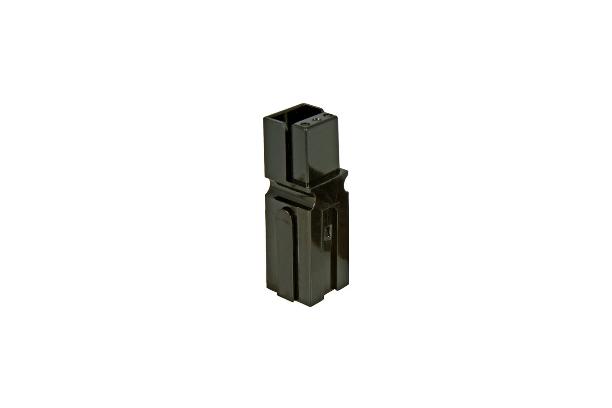

PP 180 POWERPOLE® CONNECTOR (UP TO 350 AMPS)

Anderson Power Products™ Powerpole® connectors provide cost effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. Powerpoles are stackable and color-coded.

The housings are modular and genderless. Powerpole® connectors provide 600 Volts continuous, AC or DC operation. With the addition of the extended range contacts, the PP Plus Connector now accepts a 3/0 wire size, increasing the amperage using the same robust housing. Wire sizes range from 3/0 to #10 AWG (85.0 to 5.3 mm²).



Features

  • Flat wiping contact system
  • Colored modular housings
  • Molded-In dovetails



Benefits

  • Minimal contact resistance at high current, wiping action cleans contact surface during connection/disconnection
  • Provides visual identification of proper mating connector
  • Secures individual connectors into "keyed" assemblies which prevents misconnection with similar configurations



Specifications

* UL Rated for 65°C largest wire or cable size
** Both AC & DC Voltage
*** Contact us for higher temperature rated connectors



Mechanical Drawing
