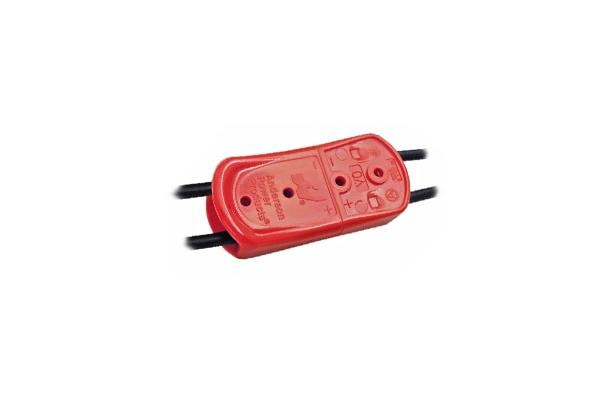

COMPACT RUGGED DC POWER CONNECTOR FOR UAVS AND PORTABLE POWER
Anderson Power Products™ SBS® Mini Connectors series are APP’s smallest DC power connector in their SB group. These rugged industrial Anderson Power Products™ SBS® Mini connectors feature a touch safe one-piece housing that insulates each contact position to achieve 600V capability. This housing is rated to UL94 and V-0 for flammability. Common uses for Anderson Power Products™ SBS® Mini connectors include UAVs, portable power storage & generation, emergency equipment and other industrial applications.
Features
- Touch Safe Housing
- Color-Coded Mechanical Keys
- Compact & Ergonomic Housing
- UL Hot Plug Rated to 45A, 72V
Mechanical Drawing
Contact Retention Spring: Stainless Steel
Plating: Tin or Silver
Hand Solder: 1331 & 1332
Electrical Data
Wire Contact with 5/8” of #12 AWG - 0.600
Wire Contact with 5/8” of #10 AWG - 0.525
* Based on: 105°C rated or better cable of the largest size. Properly calibrated APP® recommended tooling, and a 25°C ambient temperature. UL rating not to exceed the maximum operating temperature. CSA rating below a 30°C temperature rise.
** Use APP® recommended tooling only. Alternate tools may adversely affect the performance of our connectors along with UL and CSA recognition.
† Based on 261G3 with 10 AWG wire.
Mechanical
0.75 to 4.0 mm2
14 - 18 AWG: 8,000 Silver (Ag), 200 Tin (Sn)
12 to 18 AWG: 4 to 7 Lbf, 17 to 31 N
90 N
