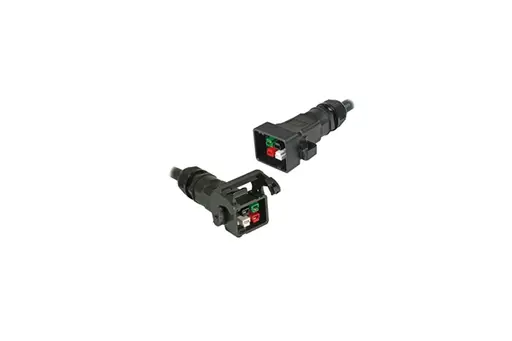

4 POSITION SOLAR SPEC PAK® (15 TO 40 AMPS)

Anderson Power Products' Solar SPEC Pak® Connector Series uses rugged and environmentally sealed (IP68) shells to protect industry leading APP® Powerpole® contacts and housing. Customer-configured Solar SPEC Pak® are designed to meet the requirements of the photovoltaic industry to NEC 2008 requirements for 1,000 volt continuous capacity, first make/last break ground and a locking feature that require a tool to unlock. The adaptive SPEC Pak design lends itself towards use in other markets including wind power, fuel cells, mass transportation, off-road vehicles, agricultural equipment, oil and petro chemical exploration and more.

These SPEC Pak® connectors feature touch safe, color-coded housings and are available in a broad selection of wire gauges.



Features

• Environmentally sealed (IP68) rugged shells
• 40A per contact at 1000 volts
• Compliant with regulatory and industrial standards
• Locking latch compliant with NEC 2008
• - 35°C drop test per UL 6703A
• TC200 & HF10 cycling test per UL6703A
• Power, signal & ground contacts available
• Up to 4 power or 16 signal circuits
• Touch safe connections on both sides
• Other configurations available



Specifications

* -40° to -120°C ( -40 to 248°F) can be achieved by using APP® Chemical Resistant Powerpole® housing. Contact us for more information.



Mechanical Drawing
