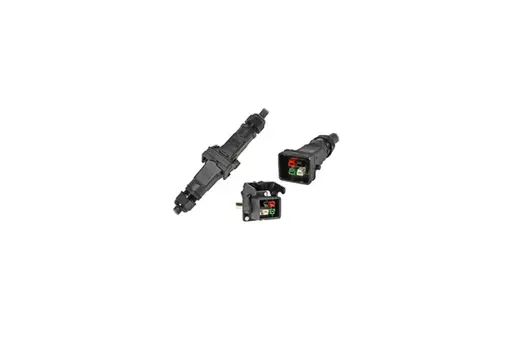

4 POSITION SPEC PAK® (15 TO 40 AMPS)

Anderson Power Products SPEC Pak® Connector Series uses rugged and environmentally sealed (IP68) shells to protect existing APP® Powerpole® contacts and housings. Customer configured SPEC Pak® Connectors may be used anywhere a rugged and waterproof high-power interconnect with signal and ground capabilities is required such as in; mass transportation, off-road vehicles, factory automation, oil and petrochemical exploration, agricultural equipment, and many more.

The core APP® Powerpole® technology within the SPEC Pak® is proven reliable and cost effective. The broad selection of touch safe, color-coded Powerpole® housings with power, signal and ground contacts accept a broad range of wire gauges, #24 to #10 AWG (0.25 to 4.0 mm2), giving users thousands of flexible design solutions in a single interconnect.



Features

• Environmentally sealed (IP68) shells
• Rugged, safe & versatile shells
• 40A per contact at 600 volts
• Power, signal & ground contacts available
• Up to 4 power or 16 signal circuits
• Touch safe connections on both sides
• Color-coding capabilities for ease of assembly
• Other configurations available



Specifications

* -40° to -120°C ( -40 to 248°F) can be achieved by using APP® Chemical Resistant Powerpole® housing. Contact us for more information.



Mechanical Drawing
